Heat Reflective Material Aluminum Foil Facing Coated Woven
Fiberglass
Woven Roving is composed of direct roving woven into a fabric
.Theconstruction of woven roving gives bi-directional(0./90.)
reinforcement andthe strength of continuous filaments .It is
compatible with UP, VE, EP resins.
As an ideal basic material for FRP hand lay-up process, its typical
products are FRP boat, tank,automotive parts,home furnishing,
sports facility and other FRP parts with large areas.
Specifications
Specification规格 | Width(mm) | Area Weight(g/㎡) | Moisture Content | Breaking Strength(N)≥ |
Warp 经纱 | Weft 纬纱 |
EWR200 g/㎡ | 800-1500 | 200±10% | ≤0.15% | 1300 | 1100 |
EWR300 g/㎡ | 800-1500 | 300±10% | ≤0.15% | 1800 | 1700 |
EWR400 g/㎡ | 800-1500 | 400±10% | ≤0.15% | 2500 | 2200 |
EWR500 g/㎡ | 800-1500 | 500±10% | ≤0.15% | 3000 | 2750 |
EWR600 g/㎡ | 800-1500 | 600±10% | ≤0.15% | 4000 | 3850 |
EWR800 g/㎡ | 800-1500 | 800±10% | ≤0.15% | 4600 | 440 |
Alu foil introduction:
Aluminium foil has anti - leakage, fresh, anti - counterfeiting, anti - theft,
anti - moisture and other functions, but also has a good
antibacterial ability. It ’s an ideal material for packaging
products. capacitor making field, construction field, ornament
field, printing field and household packing, the main products of
our company as follows: cigarette foil, golden foil paper, food
foil, capacitor foil, medical foil, beer foil, housing foil and
soft packing foil for aluminum foil manufacturer.
The manufacturing process of alu foil :
Mechanical properties of Alu foil :
| Thickness (mm) | Tensile Strength(Mpa) | Elongation % |
| 0.009-0.0099 | 45-100 | ≥0.5 |
| ≥0.010-0.011 | 50-110 | ≥1.0 |
| >0.011-0.012 | 50-110 | ≥1.5 |
| >0.012-0.013 | 50-110 | ≥1.7 |
| >0.013-0.014 | 50-110 | ≥1.8 |
| >0.014-0.016 | 50-110 | ≥2.0 |
| >0.016-0.018 | 50-110 | ≥2.2 |
| >0.018-0.020 | 50-110 | ≥2.5 |
| >0.020-0.022 | 50-110 | ≥2.8 |
| >0.022-0.025 | 50-110 | ≥3.0 |
Chemical components of Alu foil :
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Ti | Others | Al |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | - | 0.1 | 0.08 | Rem |

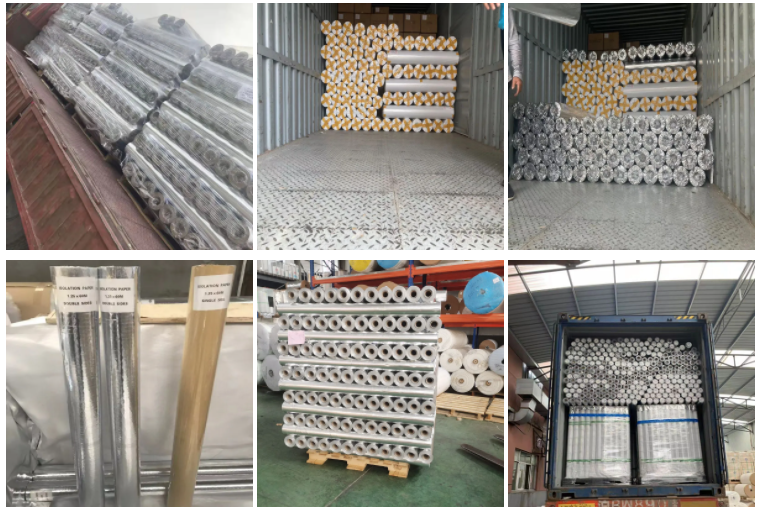

Here are the loading and application picutres of alu foil:
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided.
Aluminum Foil Fibreglass ClothFeatures
1.uniform weight and construction
2. few fuzz , fast wet-out speed
3. good covering and air-release
4. excellent mechaical strength
5. high wet-strength relention
6. Uniform tension and very little twist
7. corrosion resistant, longtime using
Alu foil advantage :
1. The surface of the aluminum foil is extremely clean and
hygienic, and no bacteria or microorganisms can grow on its
surface.
2. Aluminum foil is a non-toxic packaging material, it can be in
direct contact with food without any worries that can endanger
human health.
3. Aluminum foil is a tasteless and odorless packaging material,
which will not cause any peculiar smell to the packaged food.
4. No matter in high temperature or low temperature, there will be
no grease penetration in aluminum foil.
5. If the aluminum foil itself is not volatile, it and the packaged
food will never dry or shrink.
6. Aluminum foil has good plasticity, so it can be used to package
products of various shapes. Various shapes of containers can also
be arbitrarily formed.
7. Aluminum foil is an opaque packaging material, so it is a good
packaging material for products exposed to sunlight, such as
margarine.
FAQ:
1. If you want to get a quotation ,what information need be
provided to you?
A: Size(Width*Length*Thickness), color and the quantity demand and
any other needs.
2. When can I get price after I send an enquiry?
A: We can guarantee that you can have the price as soon as possible
